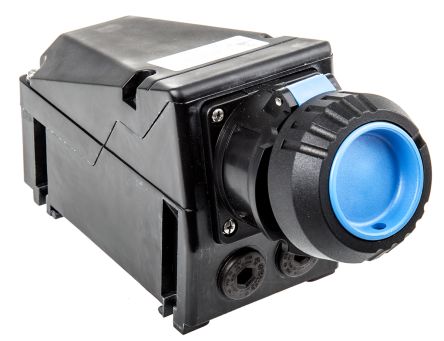

Explosion proof female Socket EEXE 16A 250 V 3PIN
CEAG Enhanced Sockets
CEAG Crouse-Hinds enhanced BS4343 (IEC309) plugs, sockets and couplers are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used Standard versions. The Enhanced version will ultimately replace the Standard range.
Patented plug and turn connections
Ingress protection to IP66/67
Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications
CEAG Standard hazardous area plugs will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plugs will NOT mate with standard sockets and couplers
Panel and wall mountable
Two cable entry points
Sockets will accept Enhanced and Standard plugs
Note
Cable entry sizes for 16A versions: 8-17mm2, 32A 17-28mm2, terminal capacity: 16A 1-4mm2, 32A 4-10mm2
Approvals
BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
Approvals
BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
| Attribute | Value |
|---|---|
| Type | Connector |
| Plug/Socket | Socket |
| Mounting Type | Surface Mount |
| Pole Format | 2P+E |
| Voltage Rating | 250 V |
| Current Rating | 16A |
| IP Rating | IP66 |
| Housing Material | Glass Fibre Reinforced PET |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Strain Relief | Yes |
| Gender | Female |
| Hazardous Area Certification | ATEX |
